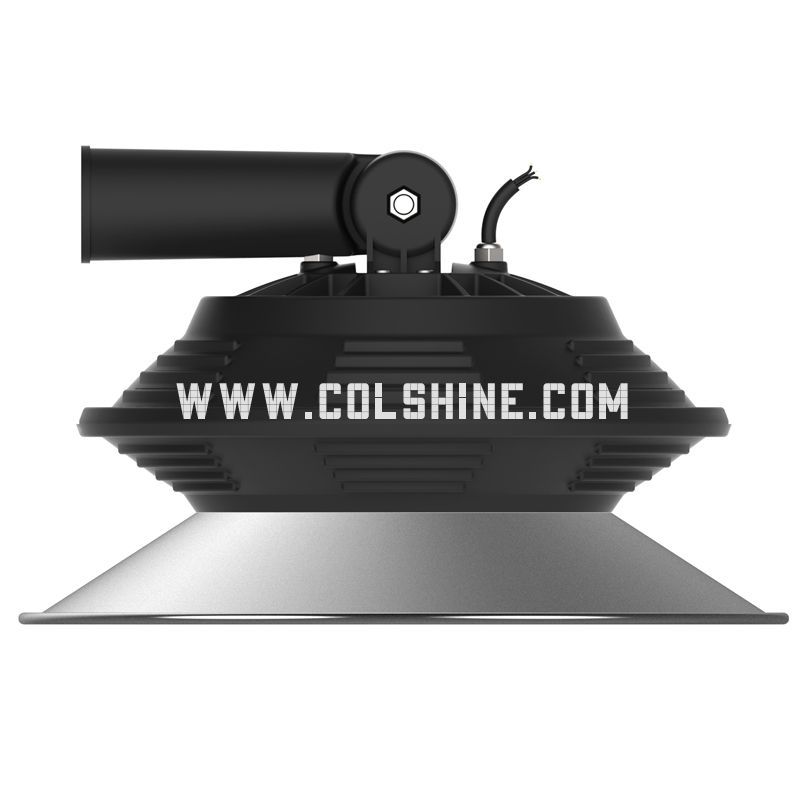

New designed 150W-480W highbay

Scan the QR code

Item No.：

Specifications：

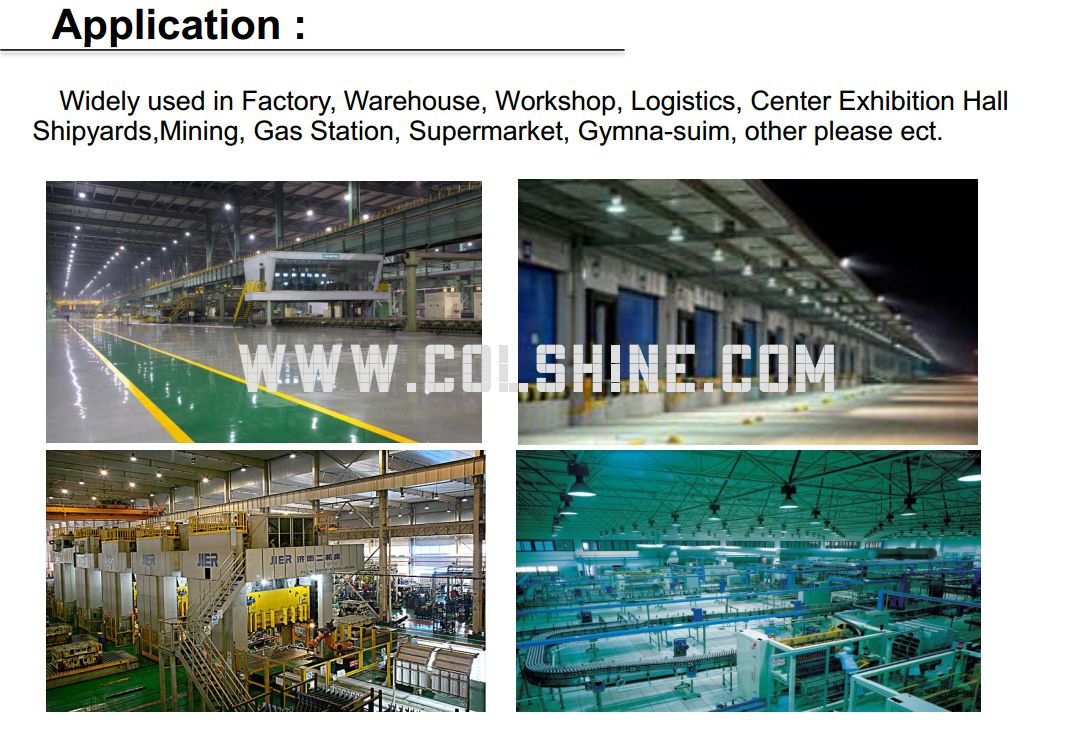

This series has an IP 65 rating and is dimmable. It can be installed indoor as Highbays, or outdoor as Flood Lights and Area Lights. Whatever the application is, this LED fixture also offers Lighting controls and multiple mounting options to accommodate your needs.

– Limited Warranty: 5 years
– Efficacy: up to 140 LPW
– Lumen Output: 43,000 – 69,000 L
– Wattage: 150 – 480 W

Inquire

Product Description

Product Description

Model	CS-HB150L	CS-HB200L	CS-HB240L	CS-HB300L	CS-HB400L	CS-HB480L
				CS-HB300H	CS-HB400H	CS-HB480H
Power	150W	200W	240W	300W	400W	480W
Lumens	130lm/w — 140lm/w
CCT	3000K / 4000K / 5000K / 5700K
Housing	AL + PC
Operation Temp	-40℃ — +50℃
Life Span	50,000 hours
LED	Philips 3030
Driver	Dimmable LED Drive
Voltage range	90-305V/AC (50/60Hz) ( CS-HB150L / CS-HB200L / CS-HB240L / CSHB300L / CS-HB400L / CS-HB480L)
	277-480V/AC (50/60Hz) ( CS-HB300H / CS-HB400H / CS-HB480H )

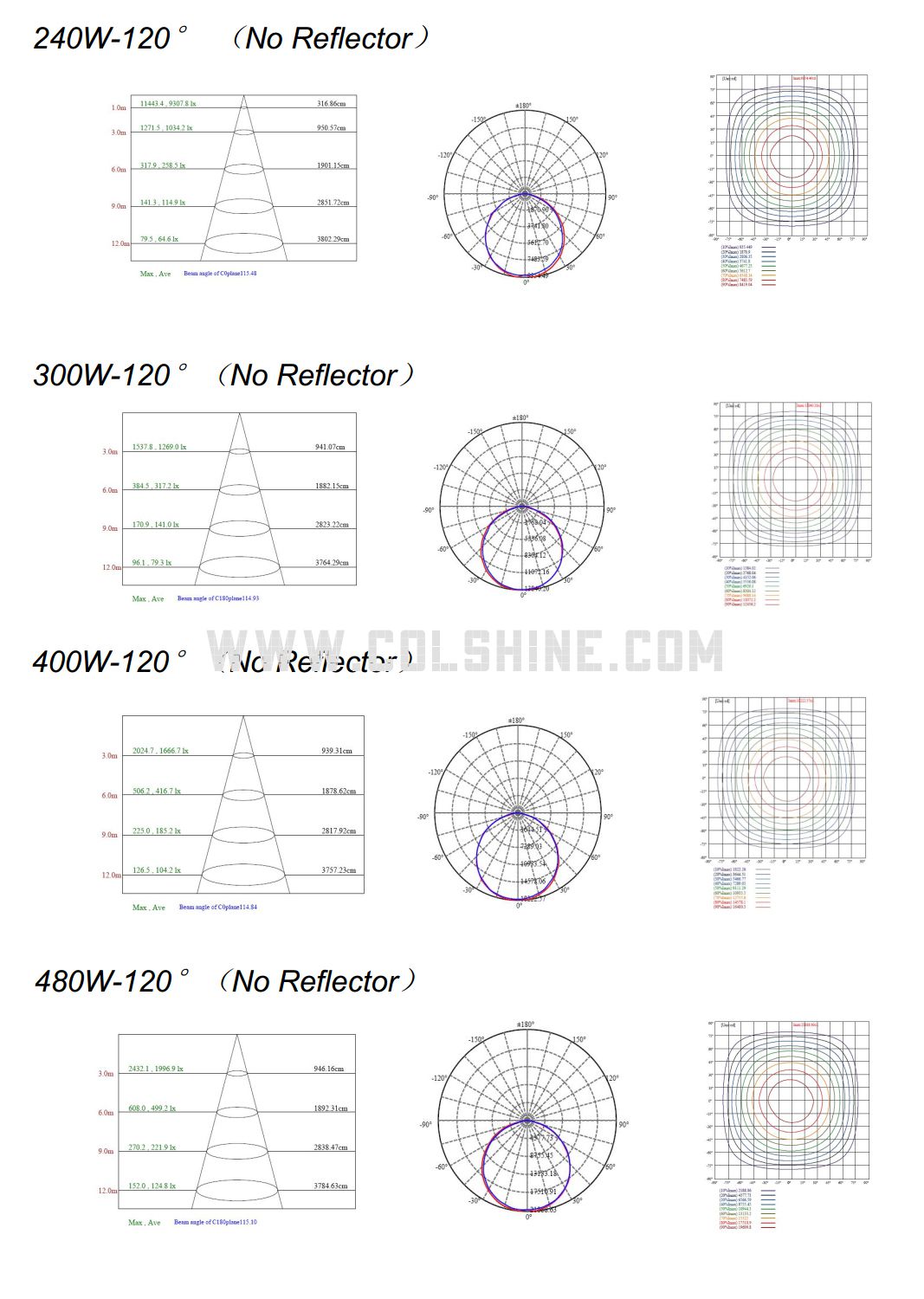

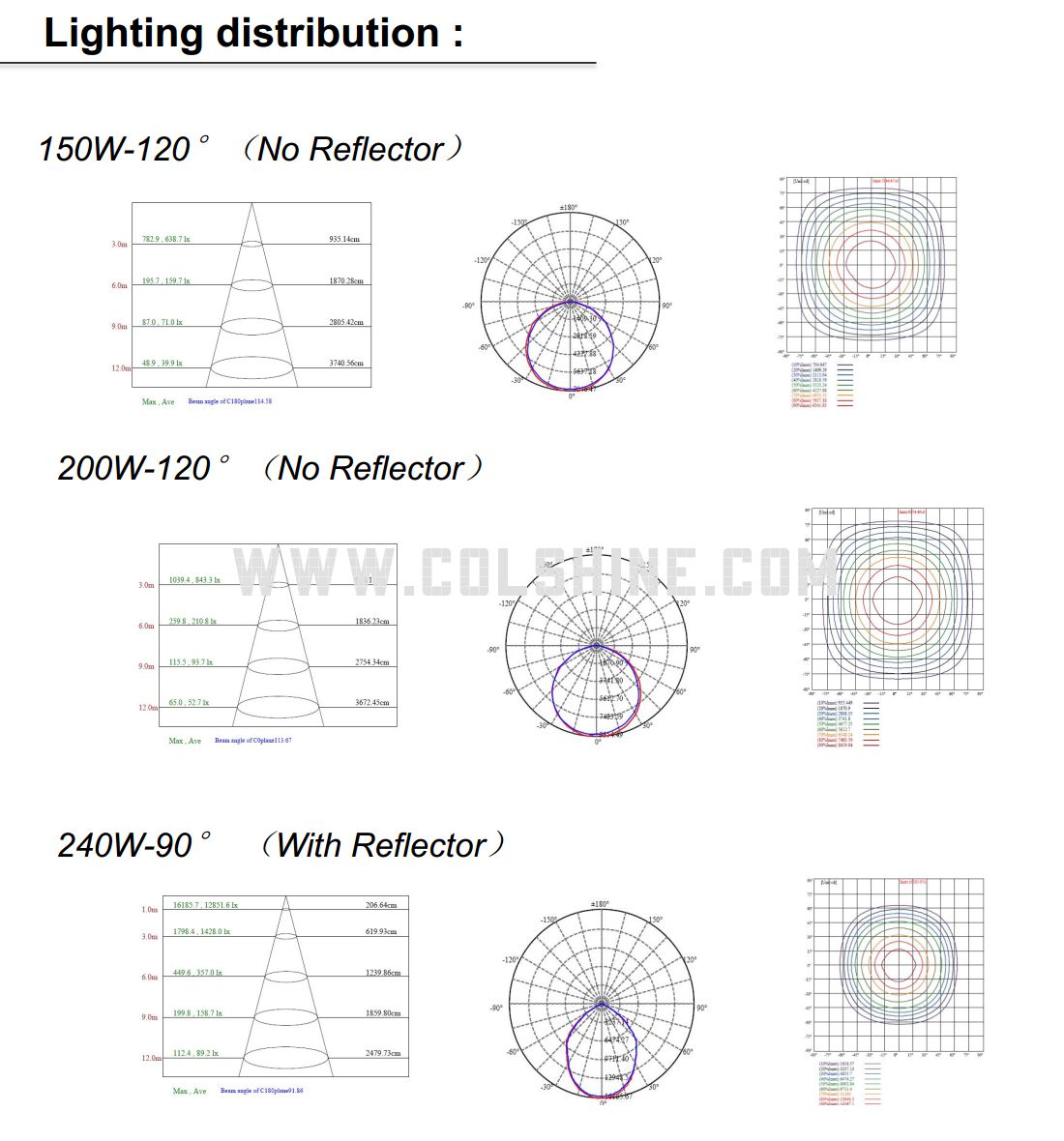

Beam Angle	90°/ 120°
CRI	＞80
PF	≥0.95

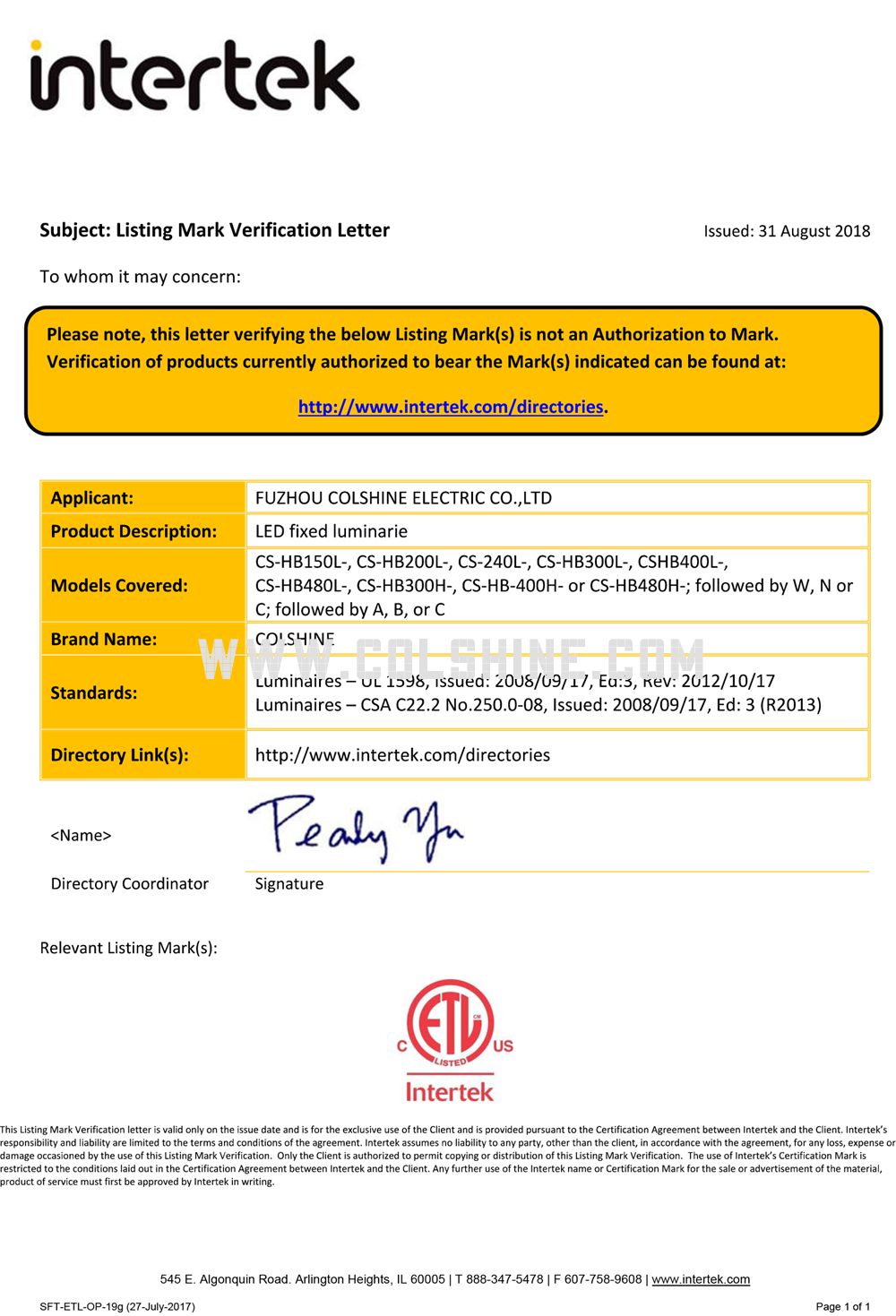

Certification	ETL/ DLC / CE / FCC / SAA / KC / PSE / RoSH
Power efficiency	≥90％
Warranty	5 years

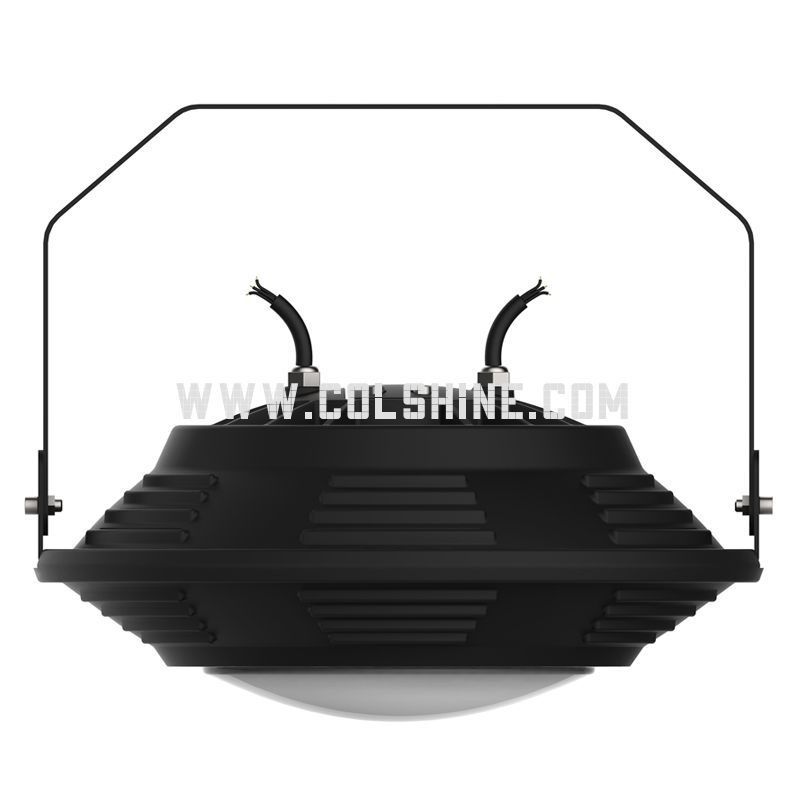

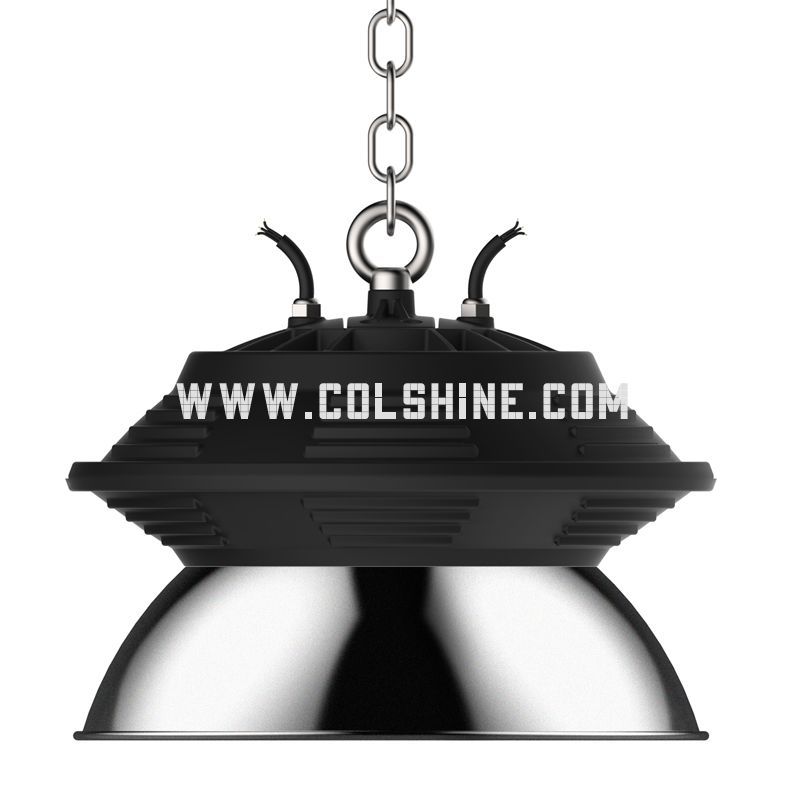

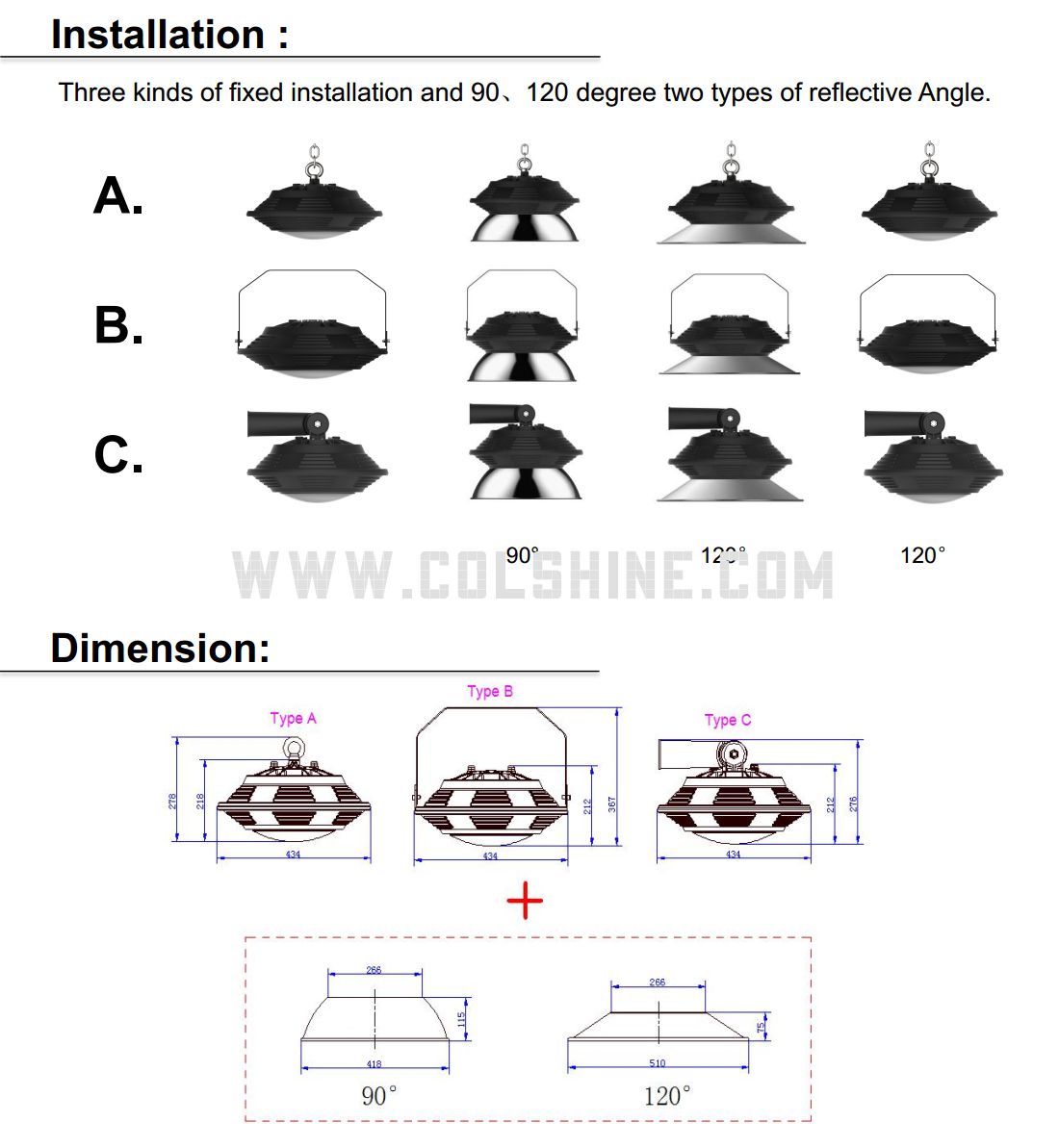

Installation	Type A / Type B / Type C

Product Features:
Unique patented appearance design focus on the quality, safety ,powerfulness
● Three kinds of fixed installation and four kinds of reflective Angle
● Super protection design of IP65 enlarge the application field.
● It saves more than 70% energy compared with the traditional lamp. Can replace the
high power of CFL, mercury lamp, high pressure sodium lamp, corn lamp, high bay etc.
● Instant-start, no stroboflash, no noise.
● 90~305V/AC (50/60Hz) of wide range voltage suits for a lot of countries application.
● Can work stably under the environment temperature of -40℃～+50℃ for a long time
